This model is an 8 channel NVR that comes with 6 cameras. The 8-channel NVR supports third-party cameras with ONVIF conformance: Profile S, Profile G, Profile T.

The 1080P CCTV Surveillance NVR has all the surveillance functions required for a home, small business or property. Each camera is recorded in 1080P resolution. Outputs include VGA for a monitor, HDMI for a HDTV, Ethernet for online use.

Manufactured by Uniview - Made in China

Included in the package:

• 1 x Network Video Recorder (NVR301-08S3-P8)

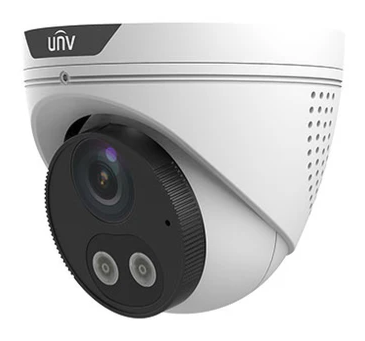

• 6 x Dome Cameras (EC-T4F28M-DL)DVR (8 channel model)

• SATA Hard Drive not included

Specifications:

• Video/Audio Input

  • IP Video Input 8-ch

• Network

  • Incoming Bandwidth: 64Mbps

  • Outgoing Bandwidth: 48Mbps

  • Remote Users: 128

  • Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

• Video/Audio Output HDMI/VGA Output

  • HDMI 3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

  • VGA 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

• Recording Resolution

  • K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

• Audio

  • 1-ch, RCA

  • Audio Compression G.711A, G.711U

• Synchronous Playback 8-ch

• Corridor Mode Screen 3/4/5/7/9

• Decoding

  • Ultra 265/H.265/H.264

• Liveview/Playback

  • 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

  • Capability 1 x 4k@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30

• Hard Disk

  • 1 x SATA interface, Capacity up to 8TB max

• VCA Detection by Camera

  • Face detection, Intrusion detection, Cross line detection, Audio detection, Enter Area, Leave Area

  • VCA Search Face Search, Behavior Search

• External Interface

  • 1 RJ-45 10M/100M self-adaptive Ethernet Interface, 2 x USB2.0

• PoE Interface

  • 8 RJ45 10M/100M self-adaptive Ethernet Interface, Max Power 30W for single port, Max 75W in total

• Power Supply

  • 52V DC, Power Consumption: ≤9 W (without HDD)

• Working Environment

  • -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

• Dimensions

  • 260mm ×240mm × 46 mm (10.2″ × 9.4″ ×1.8″)

• Weight

  • ≤1.1kg (2.43lb)

• See the full camera specifications on the Camera’s product page

Models:

Model NVR301-08S3-P8

EC-T4F28M-DL Camera (Cameras)

Additional compatible cameras available from spytech.com:

1080P Turret CCTV Camera

Hard Drives Sold Separately

Additional accessories sold separately for installation such as mounting brackets and cables. Note we recommend hiring a certified electrician to install this system because they would own the necessary tools, measurement instruments, parts and spools of cable required for a successful and safe installation.
