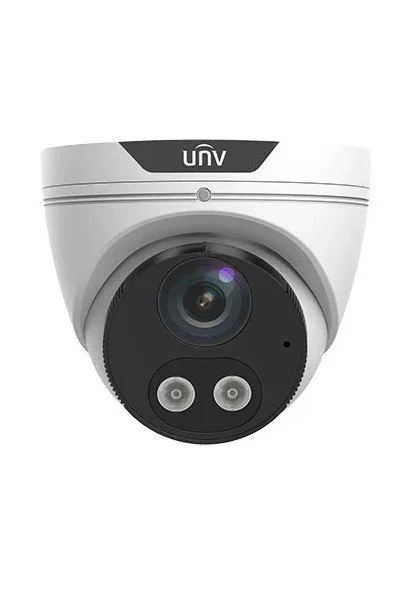

This 4MP resolution CCTV camera has IP67 rated weather resistant housing for outdoor use. The top innovations of this camera included a built-in Mic & Speaker, Smart IR up to 30m (98ft) IR distance, and 120dB true WDR technology enables clear image in strong light scene. Compatible with our 8 Channel NVR.

Included in the package:

• Thermal PIR 1080P Camera

Specifications:

• Sensor

  • 1/3″, 4.0 megapixel, progressive scan, CMOS

• Minimum Illumination

  • Colour: 0.003Lux ( F1.6, AGC ON)

  • 0Lux with light

  • Day/Night

  • IR-cut filter with auto switch (ICR)

• Shutter

  • Auto/Manual, 1 ~ 1/100000s

• Adjustment angle

  • Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°

• S/N

  • >52dB

• WDR

  • 120dB

• Lens

  • 2.8mm and 4.0mm @1.6, Fixed-focal

  • Lens Mount M12

  • Angle Of View (H) 112.9° 91.2°

  • Angle Of View (V) 59.1° 47.9°

  • Angle Of View (O) 121.2° 95.9°

• IR Range

  • Up to 30m (98ft) IR range

• White Light Range

  • Up to 30m (98ft) white light range

  • WavelengthIR：850nmIR

  • On/Off ControlAuto/Manual

• VideoVideo Compression

  • Ultra 265, H.265, H.264, MJPEGH.264

• Code Profile

  • Baseline profile, Main profile, High profile

• Frame Rate

  • Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;Video Bit Rate128 Kbps~16 Mbps

• U-code

  • Supported 9:16 Corridor Mode

  • Supported OSDUp to 4 OSDs

• Privacy Mask

  • Up to 4 areas

• ROI

  • Up to 8 areas

• Motion Detection

  • Up to 4 areas

• ImageWhite Balance

  • Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

• Image Setting

  • Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser

• Digital Noise Reduction

  • 2D/3D DNRSmart IRSupported

• Flip

  • Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

• Dewarping

  • N/AHLCSupportedBLCSupportedDefog

• Digital Defog

  • EventsBasic DetectionCross line, intrusion(based on human body detection) motion detection, tampering alarm, audio detection

• General Function

  • Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

• AudioAudio Compression

  • G.711SuppressionSupported

  • Sampling Rate 8KHZ

• StorageEdge Storage

  • Micro SD, up to 128 GB

• Network Storage

  • ANR,NAS(NFS)

• NetworkProtocols

  • IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP

• Compatible Integration

  • ONVIF (Profile S, Profile G, Profile T), API, SDKUser/HostUp to 32 users. 2 user levels: administrator and common userSecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIFClientEZStation

• EZView

  • EZLiveWeb BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and belowPlug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+InterfaceNetwork1 * RJ45 10M/100M Base-TX Ethernet

• Built-in Mic

  • Supported

• Built-in Speaker

  • Supported

• Certification

  • EMCFCC: FCC Part 15

• Safety

  • CE: EN 60950-1 UL: UL60950-1, IEC 60950-1

• General Power

  • DC 12V±25%, PoE (IEEE 802.3af)

  • Power consumption: Max 8.0W

  • Power Interface Ø 5.5mm coaxial power plug

• Dimensions

  • (Ø x H)Φ118 x 96mm (Φ4.6” x 3.8”)

• Weight

  • 0.30kg (0.66lb)

• Material

  • Metal + PlasticWorking

• Environment

  • -30°C ~ 60°C (-22°F ~ 140°F)

  • Humidity: ≤95% RH (non-condensing)

  • Strorage -30°C ~ 60°C (-22°F ~ 140°F)

  • Humidity: ≤95% RH (non-condensing)

• Surge Protection

  • 4KV

• Model: IPC3614SR3-ADF28KMC-DL

Additional accessories sold separately for installation such as mounting brackets and cables. Note we recommend hiring a certified electrician to install this system because they would own the necessary tools, measurement instruments, parts and spools of cable required for a successful and safe installation.

Wall Mount Accessory

For Use With this NVR System
